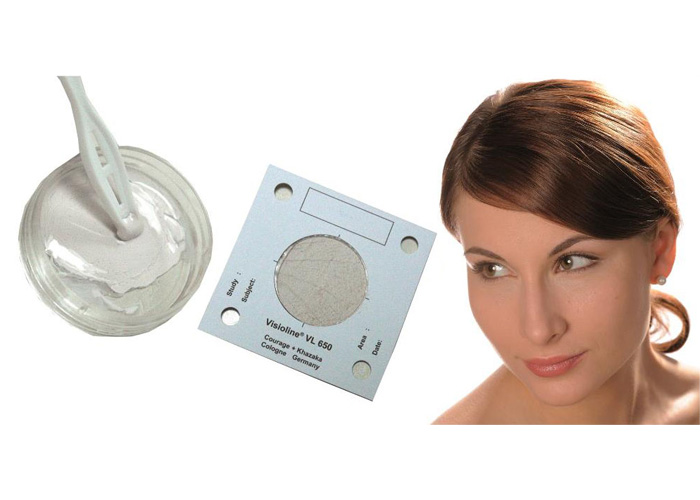

Visioline ® VL 650

공동활용

Courage+Khazaka electronic GmbH(독일)

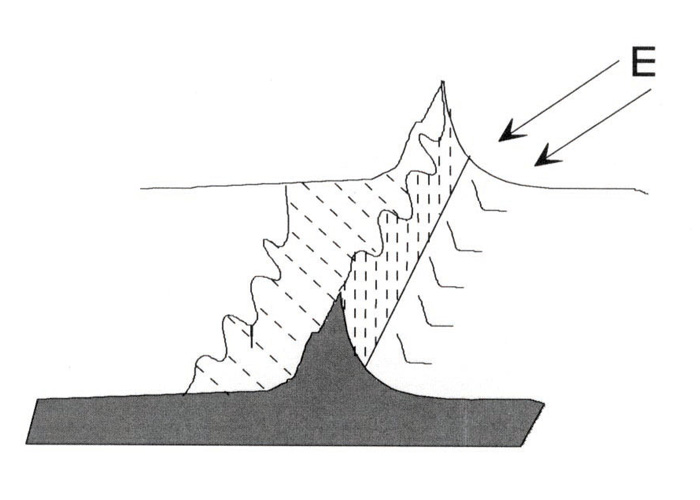

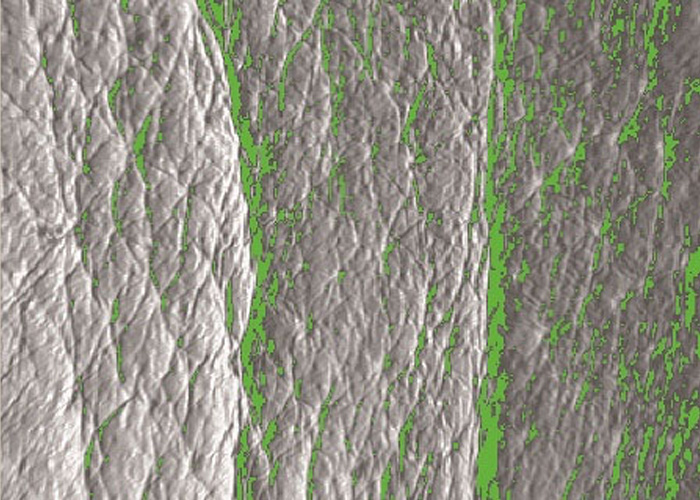

silicone replica의 Profilometery – shadow measuring method 투영법을 사용하여, Replica와 사선형의 lightning을 통해 피부주름(특히 굵은주름)의 길이, 깊이, 형태 등 정확한 양을 평가한다.

1. Power supply: Input: 100-240V, 47-63Hz
 2. Output: DC12V/4A; Port: USB (2.0 or higher)
 3. Dimensions: 15.3 x 21.7 x 21.7(W x H x D)cm
 4. Weight: approx. 4kg
 5. Light source: white-LED-illumination, oblique light 35° (±0.5 °)
  6. Measurement principle: shadow length determination
 [Camera]
  1. Measurement area: from 13.5 x 18mm to 16.5 x 22mm
  2. Resolution: 2560 x 1920 Pixel, 5MegaPixel
  3. Objective: focal length: 25mm, C-Mount (CMOS Aptina)
  4. Aperture: 1.4....16
 [Operation conditions]
  1. Temperature & relative humidity: T: 5-40°C, RH: 30-70% RH
  2. Optimal working conditions: 20°C, 50% RH
  3. Use: in closed rooms
  4. Altitude: below 2000m
  5. Storage conditions: T: 0-70°C, RH: 0-80% RH
  6. Temporary overvoltage: ±10% of the nominal voltage
  7. Transient overvoltage: up to the levels of overvoltage category II
  8. Applicable pollution degree: 2 (in the intended environment)
